A unique new oak head lining for VW Transporter T5 & T6 in SWB & LWB.

W T5/T6 T5.1/T6.1 , MK1 Transit Custom 2012 - 2024 , MK2 Transit Custom 2024- , VW T7 , MK3 Renault Trafic 2014- , MK3 Vauxhall Vivaro 2019-

** Please note our roof lining kits are strictly collection only.**

We cannot pack these for your own courier collection, collection in person from our workshop.

Supplied with x6 LED 12v cool white Hafele lights suitable for roof linings.

Lights fit in supplied 25mm holes and are only 13mm deep, overall width of light 35mm.

The roof lining is CNC machined with V Cut lines to give a slat wall effect but is supplied in sheet form ready to install. Sheet is supplied in 2 pieces with the join hidden in the V groove. Install time of a timber head lining could take several hours, this oak head lining in a solid sheets will take 1 hour. These are flexible sheets to follow the contour of the van easily.

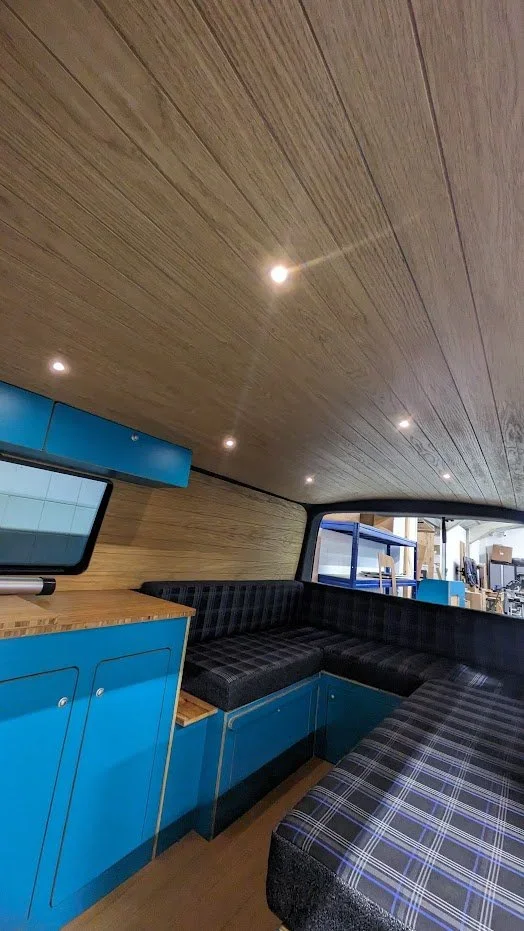

Roof fitted and van conversion by Retrofitted.

Recommended fitting: Bond the roof lining kit up with Sikaflex or Tiger seal, using large props to push the roof up into the shape of the van and leave the adhesive to cure overnight, this doesn’t leave any unsightly fixings to hide.

These sheets are made from real oak veneered 6mm MDF so can be easily flexed to the curve of the van. The oak head lining is supplied natural as the photos, this is then ready for a natural oil, wood stain, paint or lacquer to suit any bespoke van conversion.

We Try and keep T5/T6 SWB & LWB Roofs in stock as best we can, however other options are made to order and can take us 1-2 weeks for fulfilment.
